120KM/H Road Ethiopia GPS Integrated Speed Limiter YTWL_CA100F

YTWL_CA100F Road Ethiopia GPS Integrated Speed Limiter - For Ethiopia

Supply and Installation of Speed Limiter with the integrated GPS system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic

Ethiopia has provisionally agreed on new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.

Road Speed Limiters were developed to improve safety and the environment by controlling the speed of vehicles, thus reducing serious accidents and pollution. The basic function of the system is to limit the maximum speed of a vehicle to a pre-set level without affecting any of the performance of the vehicle.

Technical Parameter:

YTWL_CA100F Road Ethiopia GPS Integrated Speed Limiter - For Ethiopia

2. Application Field:

Fixed Speed Control
The customized fixed maximum top speed limit increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even override Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times.

YTWL_CA100F Road Ethiopia GPS Integrated Speed Limiter - For Ethiopia

3. Including

Analysis of the content of TCP reply:

(TP121.201.110.106P7000DD000019171223244F0000S0014R0000ON30OFF60VJun 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm)

TP121.201.110.106 P7000: IP and port

DD000019171223244: device ID number

F0000S0014: upload data fail 0 times, successful 14 times

R0000: memory data is 0

ON30OFF60: interval of acc on is 30 seconds, and acc off is 60 seconds

VJun 12 2020: firmware of the devices is JUN 12 2020

A:CMNET: the APN is CMNET

p450: Pulse coefficient is 450 (If the pulse coefficient is larger, the speed will be smaller)

s80: speed limiter max =80km/h

c15: For mechanical throttle, the time to disconnect the fuel line is 15 seconds

0.360V, 0.720V: Two throttle voltage values for electronic throttle vehicles

12.43V: vehicle voltage values

a0: a0 is acc off, a1 is acc on

G00: G00 means GPS not fixed, G10 means 10 satellites found

-59 dbm: GSM signal

4. Installation:

1) Product Accessory:

①　Power wire

②　Executor wire

③　Extension wire

④　Speaker

⑤　GPS Antenna

⑥　GSM Antenna

⑦　SIM Card Slot

⑧　User Manual

The following lines are indispensable in the installation:

6: Brown line

8: Orange line, the line of the buzzer

9: Grayline, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds

10: ACC line

11: Power ground

12: Positive power supply

5. ADD GPS device to the platform

About platform

1. Load the GPS platform: www.gps-go.com

User:XXXX password:123456

Note: XXXX is the platform account, need to contact a salesman to get this account name and password

For APP, search gps-go in google store or download from this QR:

2. The platform functions and report

3. Track: you can see the real-time location of the vehicle

How can I buy it?

We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.

What is your WhatsApp?

My WhatsApp is +86 18673367060

Ethiopia GPS Integrated Speed Limiter

120KM/H GPS Integrated Speed Limiter

Anti Jamming Car GPS Tracker

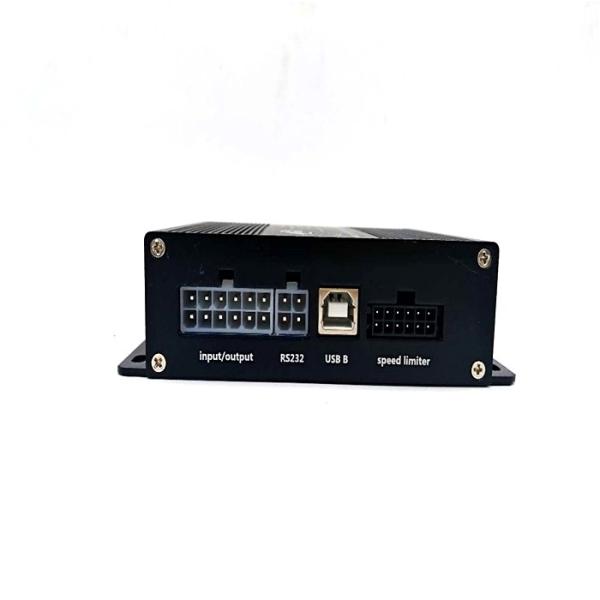

120KM/H Road Ethiopia GPS Integrated Speed Limiter YTWL_CA100F Images
