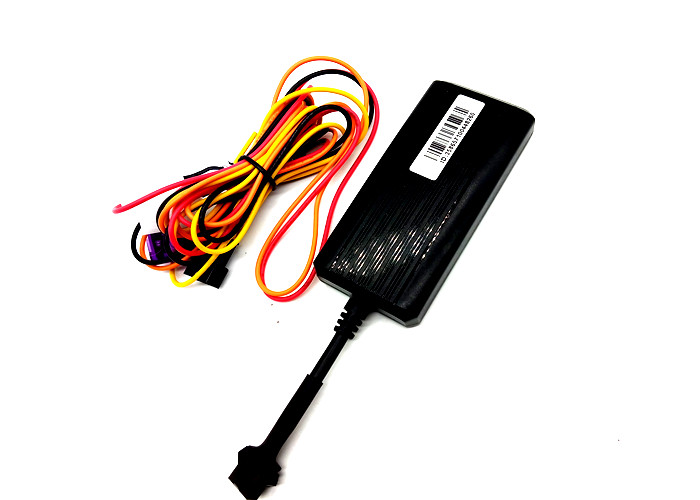

Mini 4G GPS Sim Card Vehicle Car GPS Tracker with Geo-fence Support Relay for Cutting off fuel
Accessories:
Mini 4G GPS Sim Card Vehicle Car GPS Tracker with Geo-fence Support Relay for Cutting off fuel
Specification
| Detail |
| Operating voltage | DC9-90V |
| Operating current | 22mA(12V) |
| Specifications | L90mm*W40mm*H15mm |
| Positioning mode | GPS, LBS and positioning |
| Positioning error | < 10 m |
| Support WCDMA | Yes |
| Communication | TCP/IP |
| Operating temperature range | -20℃～+70℃ |
| Storage temperature range | -40℃~+85℃ |
| weight | 50g |
Main function
| 1. Remote power off function |
| 2. Real-time positioning function |
| 3. Anti-theft alarm |
| 4. Track playback function |
| 5. Vibration alarm |
| 6. Overspeed alarm |
| 7. Electronic fence function |
Mini 4G GPS Sim Card Vehicle Car GPS Tracker with Geo-fence Support Relay for Cutting off fuel
Device status indicators
1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Installation for SIM of device
Preparation for the installation
1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 Put back the front cover and screw it up.
5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
Mini 4G GPS Sim Card Vehicle Car GPS Tracker with Geo-fence Support Relay for Cutting off fuel
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
Any issue please contact the local distributors.
